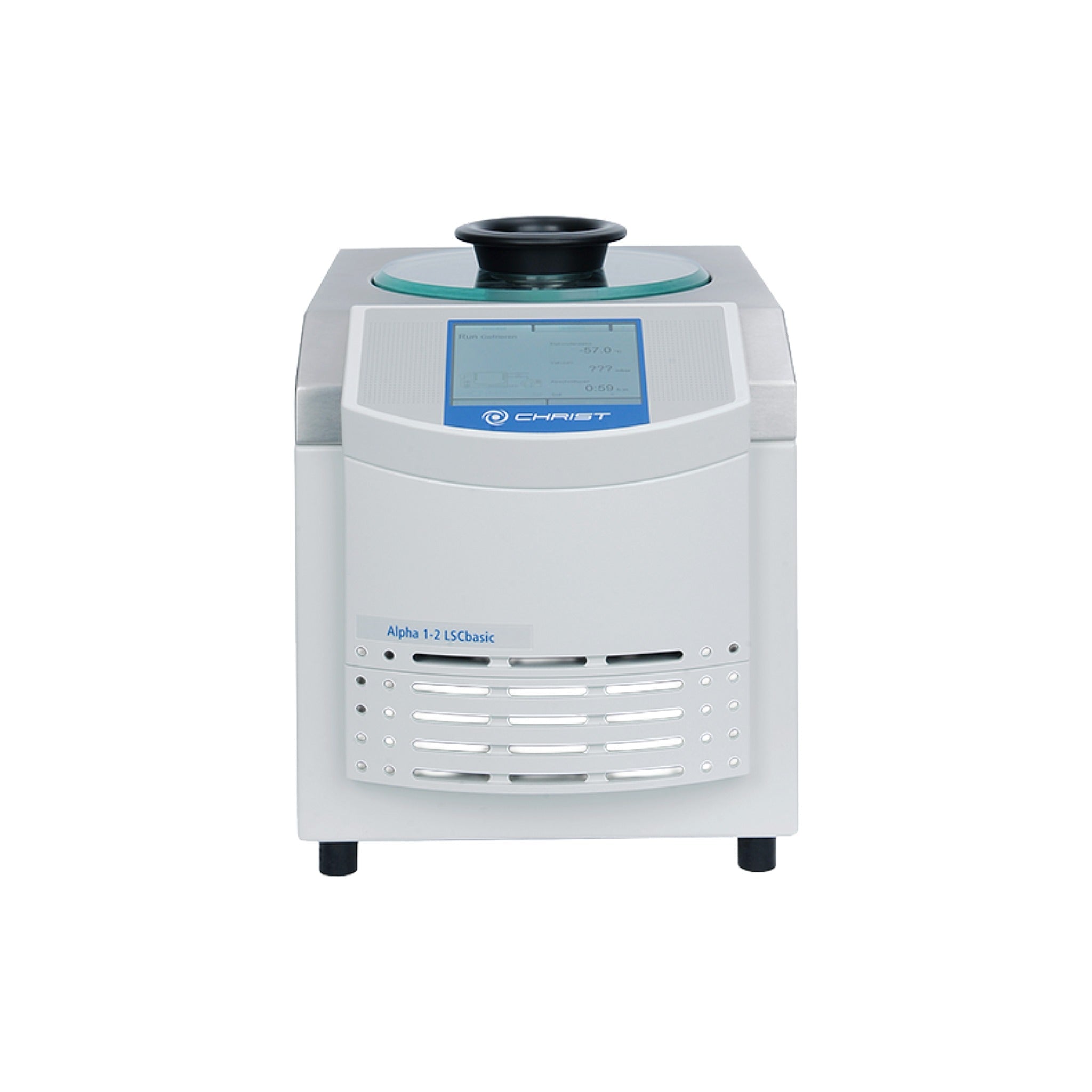

Laboratory Freeze Dryer Alpha 1-2 LSCbasic (Entry Package)

The EntryPackage Freeze Drying Package is the perfect starting point for professional laboratory freeze drying. It combines time-tested Martin Christ technology with remarkably simple operation and a highly compact benchtop design. This package is ideal for routine applications, R&D laboratories, and sample capacities up to 2 kg. At its core is the reliable Alpha 1-2 LSCbasic freeze dryer, which features high ice condenser efficiency and utilizes eco-friendly natural refrigerants. The intuitive LSCbasic control system with an integrated color touchscreen grants direct access to all process data, visualizes process progress graphically, and provides peace of mind through password protection and automated maintenance reminders.

Technical Specifications

• Ice Condenser Capacity: max. 2.5 kg
• Ice Condenser Performance: max. 2 kg / 24 h
• Ice Condenser Temperature: approx. –55 °C
• Dimensions (W × H × D): 315 × 345 × 470 mm
• Weight: approx. 28 kg
• Apparent Power: 0.85 kVA
• Electrical Connection: 230 V / 50 Hz
• Refrigerant: Natural, environmentally friendly refrigerant
• Control Interface: LSCbasic color touchscreen with multi-language interface and graphical process visualization

Scope of Delivery

• Alpha 1-2 LSCbasic freeze dryer
• Vacuum pump (capacity 3 m³/h)
• Electromagnetic pressure control valve
• Vakuumsensor VCP 63
• Acrylic drying chamber with 6 ports for flasks
• 6 rubber valves
• Base plate for drying chamber
• Vacuum hose and all necessary connection fittings

Wichtige Hinweise!

Verkauf nur an Gewerbekunden: Der Vertrieb erfolgt ausschließlich an Unternehmen, öffentliche Einrichtungen und Hochschulen. Eine Belieferung von Privatpersonen ist ausgeschlossen.

Produktabbildungen: Abbildungen dienen der Illustration und können vom tatsächlichen Lieferumfang abweichen. Gezeigt wird ggf. eine beispielhafte Variante.
