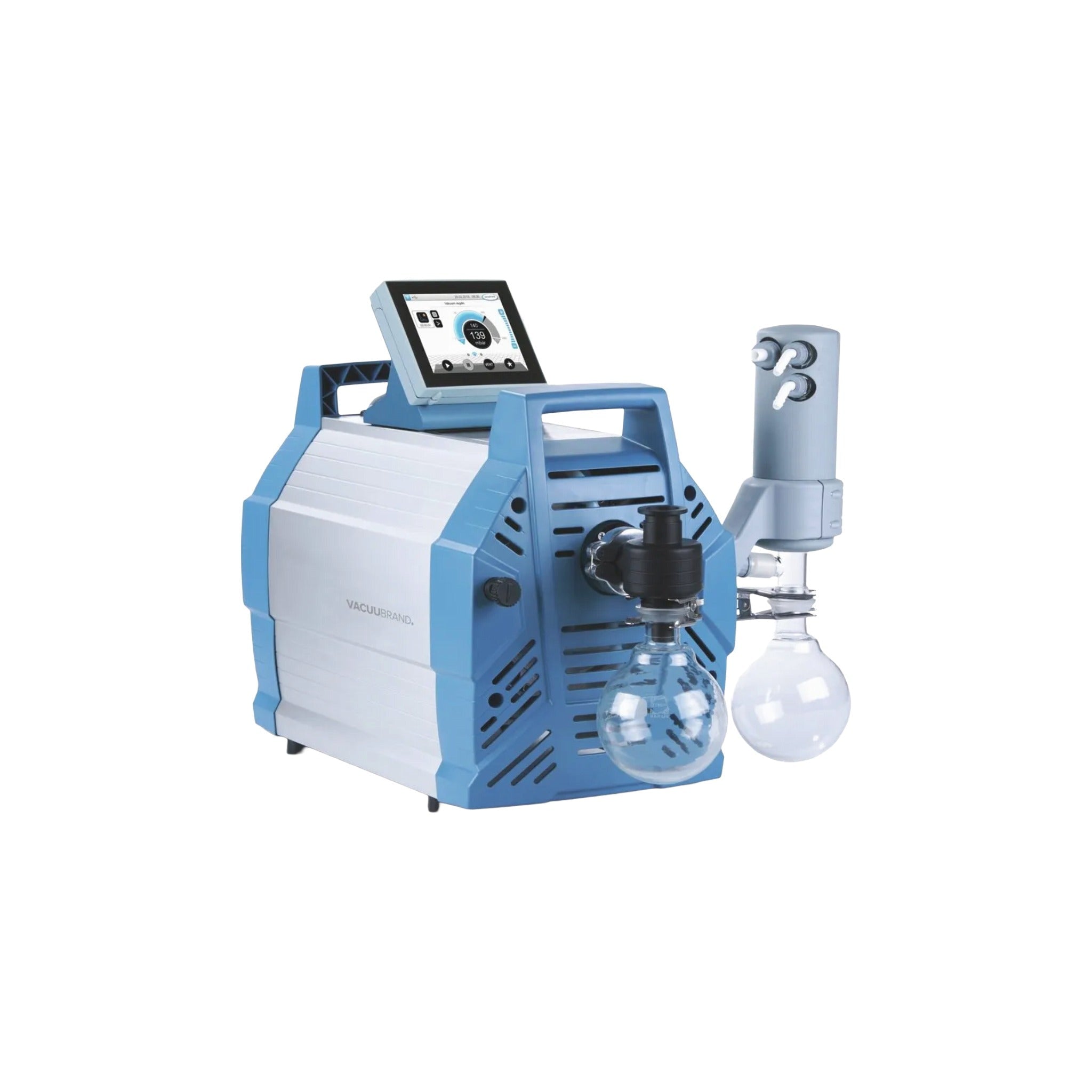

VARIO® Chemistry Pump Stand PC 3004 VARIO select, 200–230 V / 50–60 Hz

VARIO® Chemistry Pump Stand PC 3004 VARIO select is a completely assembled, ready-to-operate vacuum system for laboratory applications and the evaporation of large quantities of solvents. It features a VACUU·SELECT vacuum controller, automatic boiling-point detection and a powerful diaphragm pump.

Technical Features

• Ultimate vacuum: 1.5 mbar / 1.1 torr
• Ultimate vacuum with gas ballast: 3 mbar / 2.2 torr
• Maximum pumping speed at 50 Hz: 4.6 m³/h
• Number of cylinders: 4
• Number of stages: 3
• Vacuum display / controller: VACUU·SELECT
• Suction-side connection: Hose nozzle DN 8–10 mm
• Pressure-side connection: Hose nozzle DN 8–10 mm
• Cooling-water connection: 2 × hose nozzle DN 6–8 mm
• Rated power: 0.53 kW
• IP protection rating according to IEC 60529: IP 20
• Dimensions L × W × H: 419 × 243 × 457 mm
• Weight: 21.1 kg
• Noise level: 43 dBA
• EX approval: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
• NRTL certification: No
• Rated voltage: 200–230 V
• Mains frequency: 50–60 Hz
• Interface: Ethernet (RJ45): Modbus TCP / USB (Type A): data transfer and software update / RS-232 (additional adapter required)
• Scope of delivery: Pump stand completely assembled, ready for operation, with instructions

Important Information!

Sale to commercial customers only: Products are sold exclusively to companies, public institutions and universities. Delivery to private individuals is excluded.

Product images: Images are for illustrative purposes and may differ from the actual scope of delivery. A representative variant may be shown.
